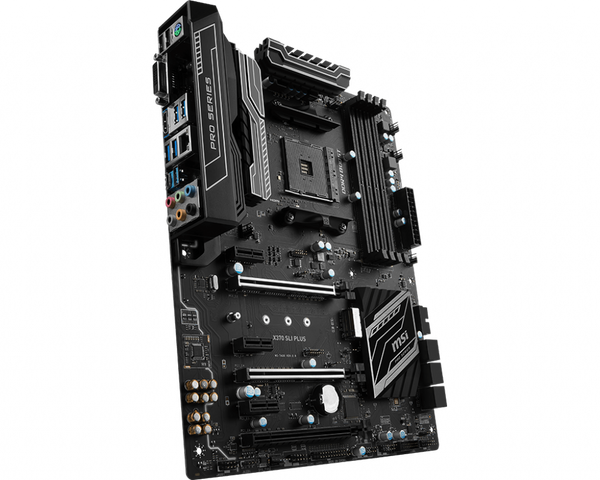

Motherboard AM4/DDR4 MSI (X370 SLI Plus)

Motherboard AM4/DDR4 MSI (X370 SLI Plus)

Rs 9,900.00

Tax included.

PROCESSOR

Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4

See supported processors

CHIPSET

AMD® X370 Chipset

MEMORY

  • 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
    • Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz1
  • Dual channel memory architecture
  • Supports non-ECC, un-buffered memory
  • Supports ECC UDIMM memory (non-ECC mode)
  1. A-series / Athlon™ X4 processors support up to 2400 MHz only. Please refer www.msi.com for more information on compatible memory.

See supported memory

SLOTS

  • 2x PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
    • RYZEN series processors support x16/x0, x8/x8 mode
    • Ryzen™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 processors support x8/x0 mode/li>
    • AMD® Athlon™ with Radeon™ Vega Graphics processors support x4/x0 mode
  • 1x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1
    • 3x PCIe 2.0 x1 slots
  1. PCI_E6 slot will be PCIe 2.0 x1 when installing device in any PCIe x1 slot.

ONBOARD GRAPHICS

  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz, 1600x1200@60Hz1,3
  • 1 x HDMI™ 1.4 port, supports a maximum resolution of 2560x1600@60Hz1,2,3
  1. Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series Processors
  2. Due to CPU spec limitation, when using AMD Athlon™ with Radeon™ Vega Graphics Processors, it could only support HDMI display output
  3. Maximum shared memory of 2048 MB

MULTI-GPU

  • RYZEN series processor
    • Supports 2-Way NVIDIA® SLI™ Technology
    • Supports 3-Way AMD® CrossFire™ Technology
  • AMD® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors
    • Supports 2-Way AMD® CrossFire™ Technology

STORAGE

AMD® X370 Chipset

  • 6 x SATA 6Gb/s ports
  • 1 x M.2 slot (Key M)
    • Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
  • Supports RAID 0, RAID 1 and RAID 10

USB

ASMedia® ASM2142 Chipset

  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
  • 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

AMD® X370 Chipset

  • 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AMD® CPU

  • 4x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

  • 1 x 24-pin ATX 12V power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin PUMP fan connector (supports up to 2A)
  • 4 x 4-pin system fan connectors
  • 1 x RGB LED connector
  • 1 x TPM module connector
  • 1 x Serial port connector
  • 1 x Parallel port connector
  • 1 x Front panel audio connector
  • 2 x System panel connectors
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper

BACK PANEL PORTS

  1. PS/2 Port
  2. USB 3.1(Gen 1)
  3. LAN Port
  4. HD Audio Connectors
  5. USB 2.0 Ports
  6. DVI-D
  7. HDMI
  8. USB 3.1(Gen 1)
  9. USB 3.1(Gen 2)

DIMENSIONS

  • 12.0 in. x 9.6 in. (30.4 cm x 24.3 cm)
  • ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

  • Support for Windows® 10 64-bit
  • Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
