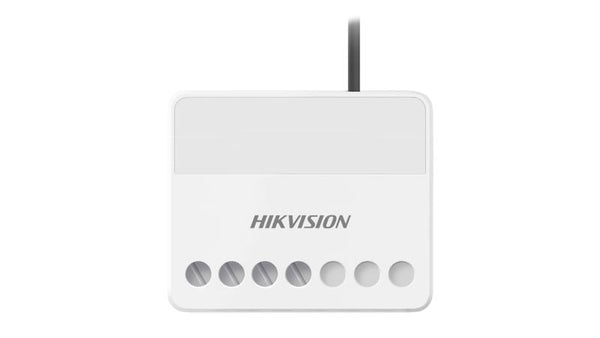

Hikvision DS-PM1-O1H-WE Wall Switch

Hikvision DS-PM1-O1H-WE Wall Switch

Rs 1,750.00

Tax included.
  • 868MHz two-way wireless communication
  • AES-128 encryption
  • LED display, show status of device and replay on/off display
  • Small case design, which can be put into hiding places easily
  • Automation operating, one button turn on/off from APP/Keyfob/Keypad
  • Setting scenarios by different events

    • Software features
    • Scenario settingBy Alarm, By Operation, By Fault, By Schedule, By Manual
    • Learning button1, For register
    • Hardware features
    • Serial port1, for debug
    • Electrical characteristics
    • Power supplyAC 100v – 240v, 50/60 HZ
    • Operation humidity10％~90％
    • Operation temperature﹣10℃~+55℃
    • Wireless transmission
    • RF frequency868MHz
    • RF methodTwo way communication
    • RF modulation2GFSK
    • RF distance1600m
    • Wireless securityAES-128
    • Display
    • LEDs status3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue)
    • General
    • Installation methodWall Mounting or Inside 86 box
    • Dimension(WxHxD)38x25x18mm
    • Shell materialPlastic
    • ColorWhite
    • Weight31.5g
    • Device management
    • Relay output1, NO/NC (AC 100~240v, Max 13A）
