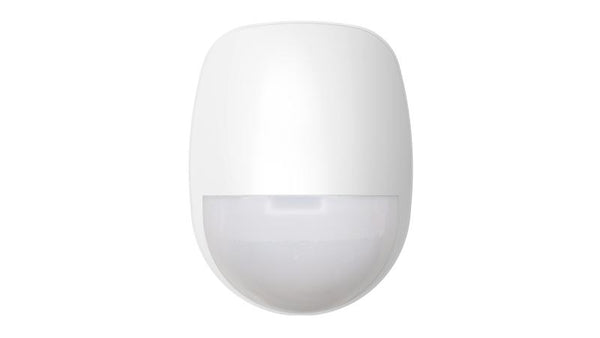

Hikvision DS-PDP18-EG2 Wired internal 18m PIR detector

Hikvision DS-PDP18-EG2 Wired internal 18m PIR detector

Rs 390.00

Tax included.
  • Modern design - Delivers a small and sleek detection solution; providing a modern yet unobtrusive finish to complement any room.
  • Detection range - Up to 18m volumetric detection coverage, the Ellipse is the ideal solution for any small to large indoor rooms and spaces.
  • Digital temperature compensation – Digitally adjusts its sensitivity to maintain its specified range when the background temperature is close to body temperature.
  • Automatic sensitivity - self-adapts to changing environmental conditions to maintain stability and intruder catch performance.
  • 3D optics - Improves the detection of moving targets; ensuring more precise signals can be received from the PIR by enabling the perfect focusing of the infra-red signal onto the pyro-electric sensor.
  • Creep-zone protection - covers the blind spot area directly below it, where an intruder may have otherwise avoided detection.
  • Selectable EOL resistors - incorporates selectable alarm resistor values of 1K, 2K2, 4K7, 5K6 and 8K2, as well as tamper resistance values of 1K, 2K2, 4K7 and 5K6; catering for most control panels on the market.
  • Wall and ceiling mount options - can be fitted at a mounting height of 1.8m to 2.4m . There is also a ceiling mount option available if required.
  • Anti-insect interference - Protects the detector from possible insect infestation, as well as shielding air movement in front of its pyro-electric sensor and protecting against adverse reflections from inside the detector housing.
  • Wide voltage - 9 to 16 V wide voltage adaptation with polarity reverse connection protection
  • IFT technology - automatically adjust the upper and lower alarm trip thresholds when exposed to electromagnetic or electrical interference and shift the thresholds before the detector goes into false alarm.


    • Detection performance
    • Detection Range18m
    • Detection Angle85.9°
    • Velocity range0.3 ~ 2 m/s
    • Sensitivity adjustmentHigh, Auto, Low
    • Pet Immunity10Kg (With optional pet mask)
    • White Light Filter6500lux
    • Software features
    • Tamper-ProofFront
    • Hardware features
    • IndicatorBlue (alarm)
    • Electrical characteristics
    • Power supply9 to 16 VDC (standard: 12 VDC)
    • Power Consumption11mA (max)
    • General
    • Dimension(WxHxD)65.4mm x 86.8mm x 45.5mm
    • Weight68 g
    • Application scenarioIndoor
    • Installation height1.8 to 2.4m
    • Operation temperature

      -10 °C to 55 °C (14 °F to 131 °F)

      -10 °C to 40 °C (14 °F to 104 °F) Certified

    • Operation humidity10% to 90%
    • BracketOptional wall & ceiling accessory
    • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
