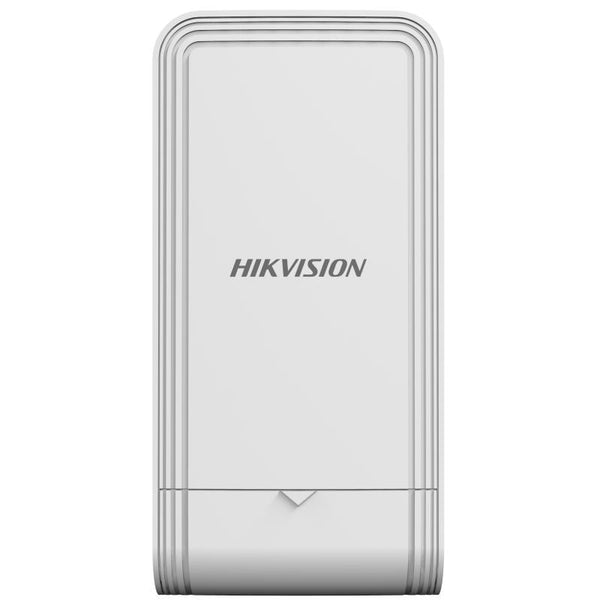

Hikvision DS-3WF02C-5AC/O5Ghz 867Mbps 5km Outdoor Wireless CPE

Hikvision DS-3WF02C-5AC/O5Ghz 867Mbps 5km Outdoor Wireless CPE

Rs 3,000.00

Tax included.
  • All gigabit LAN ports
  • TDMA supported
  • Quick match through DIP switch
  • Visualized topology management
  • Up to 5 km wireless transmission distance
    • General
    • Product Dimensions (W × H × D)92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'')
    • Package Dimensions (W × H × D)132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
    • Net Weight0.307 kg (0.677 lb)
    • Gross Weight0.807 kg (1.779 lb)
    • Packing ListWireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,Binding Tape × 2,Quick Start Guide ×1
    • Packing MethodSingle unit packing
    • Working Temperature-30 °C to 70 °C (-22 °F to 158 °F)
    • Working Humidity5% to 95% (no condensation)
    • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
    • Storage Humidity5% to 95% (no condensation)
    • Installation ModePole Mounting
    • Ingress ProtectionIP55
    • Power Consumption2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W
    • Wireless Parameter
    • Max. Transmission Rate of Air Interface≤ 867 Mbps
    • Wireless StandardIEEE 802.11/a/n/ac
    • Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz
    • Antenna Gain12 dBi
    • Antenna Angle(H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
    • Transmitting Power22 dBm (Note: Transmitting power may vary with local regulations.)
    • Receiving Sensitivity-58±2 dBm@AC80-MCS9,-84±2dBm@AC80-MCS0
    • Throughput RatePoint to point: Support up to 4-ch IPC (2MP) in Max. 5 KM distance and Max. 20 Mbps bandwidth,Point to point: Support up to 40-ch IPC (2MP) in Max. 1 KM distance and Max. 200 Mbps bandwidth,Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 1 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection
    • Hardware Parameter
    • Network Interface2 × 1000 Mbps RJ45 ports
    • LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
    • ResetHardware resetting button
    • Power Supply12 VDC/1 A Passive PoE
    • Software Function
    • Application FunctionTDMA,DFS,TPC,IFM,IPM
    • Channel Width20/40/80 MHz
    • Channel SelectionAuto/manual selection
    • Network ProtocolNTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
    • Security ModeWPA2-PSK
    • Security MechanismWireless network name hidden
    • Management MethodWeb,iVMS-4200,HCP
    • UpgradeWeb,iVMS-4200,HCP
    • System LogSyslog,Control center information
    • Approval
    • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
    • SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
    • ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
    • RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247
